HK-UGUDLP0001 / HK-UGUDLP0002

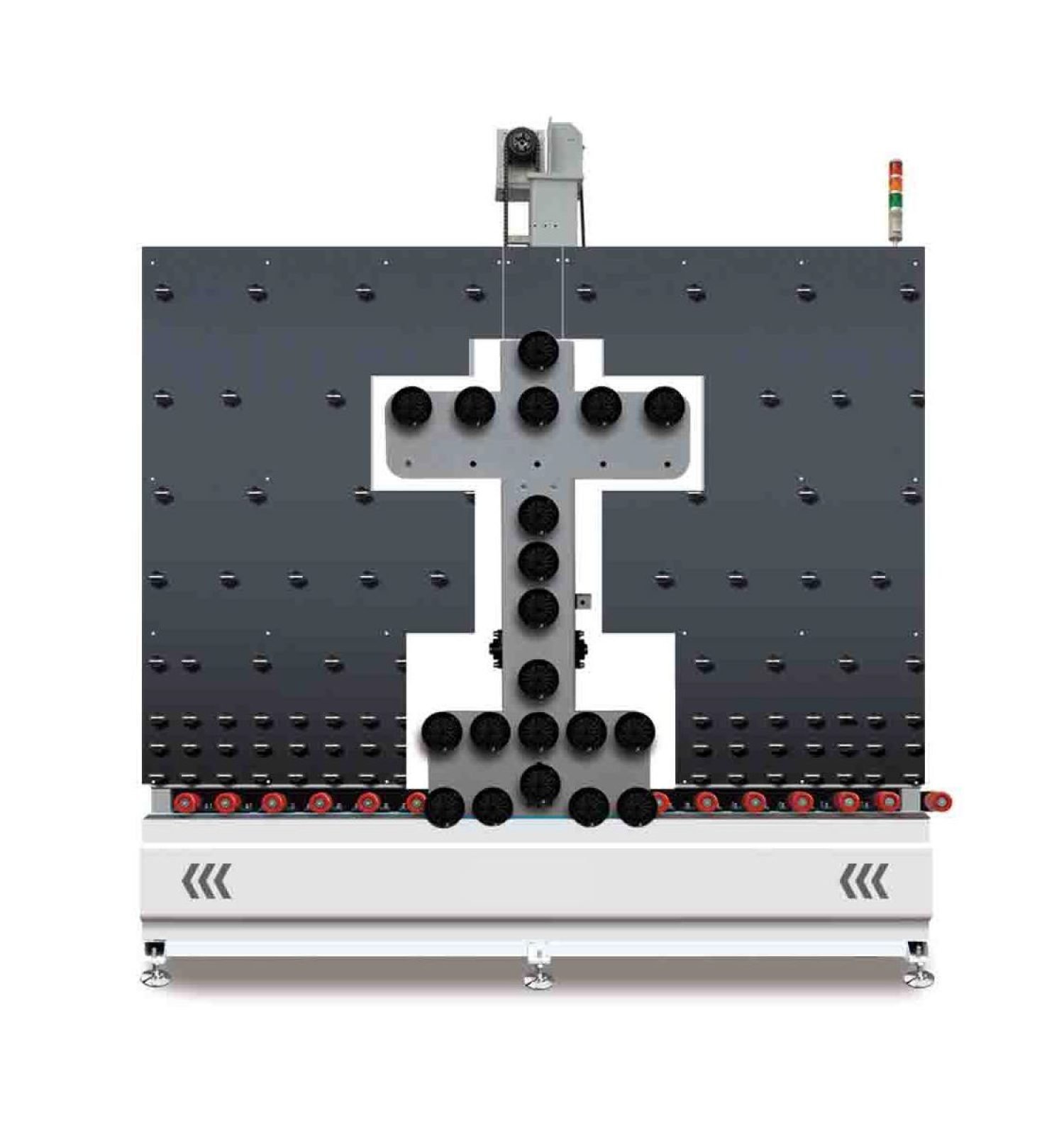

Vertical IG Production Line
Fully automatic operation controlled via a state-of-the-art touchscreen. Intelligent diagnostic system with Low-E glass detection.Cutting-edge electronics ensuring continuous, uninterrupted operation.The washing process is carried out using high-performance equipment, while pressing is executed with maximum precision thanks to a specialized CNC system.
Technical parameters
- Min glass size: 300 mm × 400 mm
- Glass thickness: 3 to 15 mm
- Washing speed: 3 to 10 m/min
- Power supply: 35kW - 380V/50Hz
- Insulating glass thickness: 15 to 50 mm
- Glass transfer speed: 45 m/min
- Air requirements: 0.8 m³/min at 10 kg/cm²
Performance features
- Low-E glass detection
- Advanced electronic control
- High performance washing system
- Automatic temperature control
- Uniform, precise press system
HK-UGUDS0003

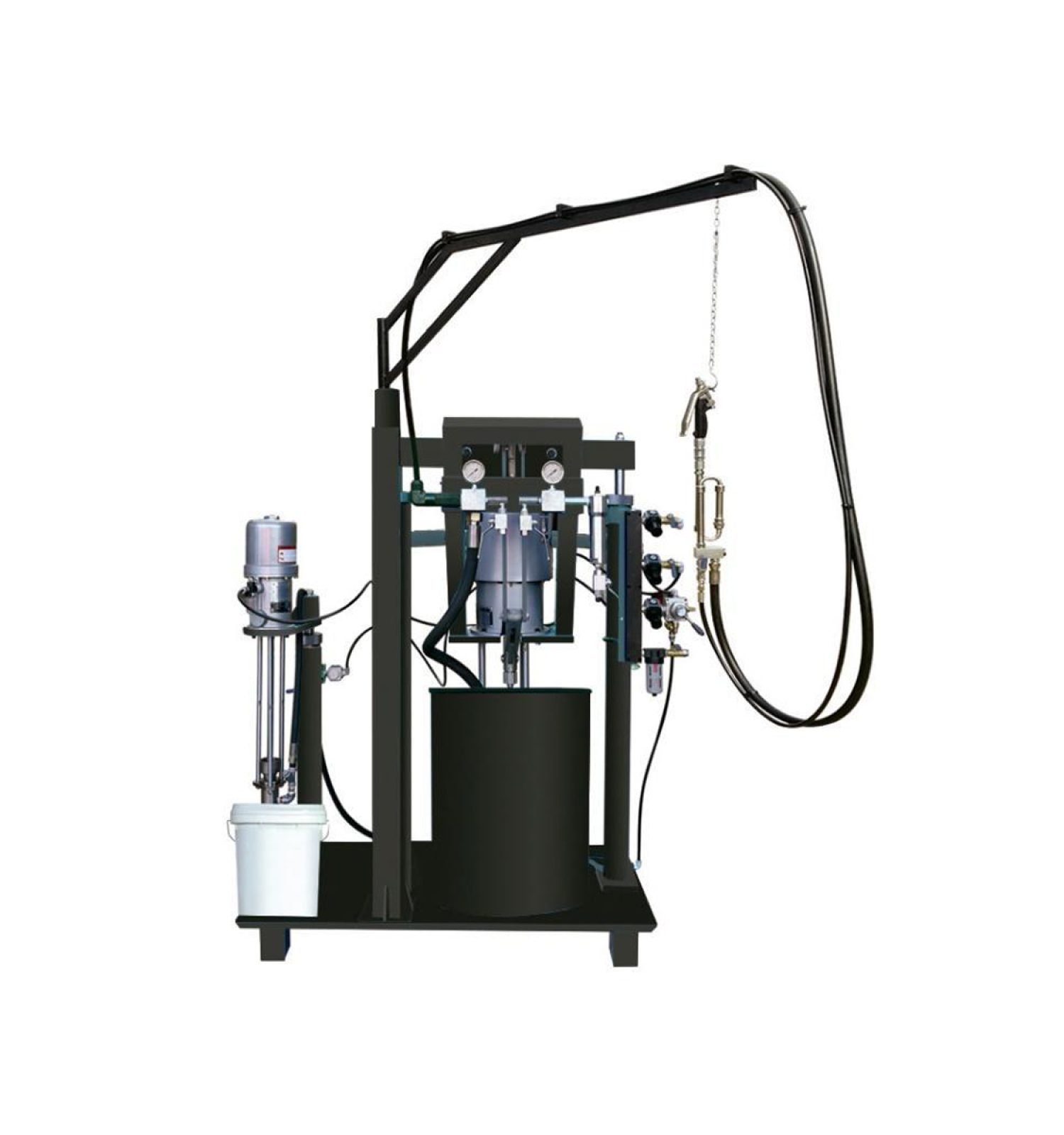

Manual Two-component Glue Machine
Manual edge sealing machine for insulating glass production. Features high-pressure pump, precise mixing, reliable pneumatic system, and quick-change lifting mechanism for smooth, cavity-free pumping of high-viscosity materials.
Technical parameters
- Air source pressure: 0.5–0.8 Mpa
- Max pump frequency: 60 times/min
- Max fluid pressure: 34.5 Mpa
- Working pressure: 20.0 Mpa
- Base material supply: 55Gal (200 L)
- Curing agent supply: 5Gal (20 L)
- Max output flow: 10 L/min
- Max air consumption: 0.8 m³/min
- Glue pressure ratio: 50:1
- System weight: 600 kg
- Dimensions: 1100×950×1630(2260) mm
- Proportion range: 6:1–14:1
Performance features
- Reliable pneumatic drive system
- Cavity-free, air-free high-viscosity pumping
- Precision mixing with high-quality components
- Quick material change with pneumatic lift
- Trusted branded core parts
HK-UGUDE0009

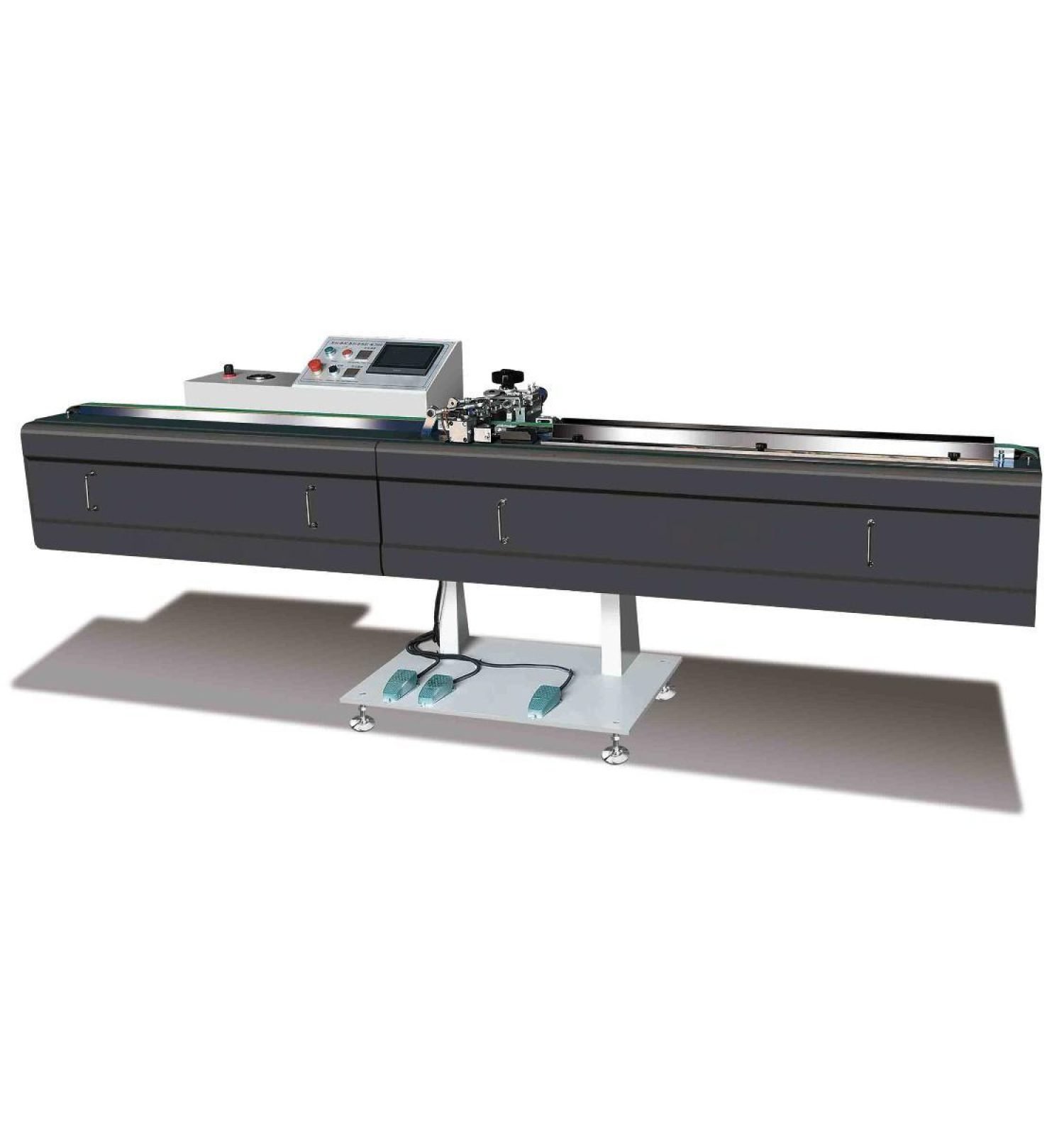

Butyl Extruder Machine
Automatic machine for primary sealing of insulating glass with butyl rubber. A high-capacity cylinder, constant pressure, and precise temperature control ensure uniform, high-quality application at high speed.
Technical parameters
- Extrusion pressure: 12–14 Mpa
- Gluing temperature: 100–140 °C
- Total power: 2.5 Kw
- Pneumatic pressure: 0.5–0.8 Mpa
- Adjustable head range: 4–20 mm
- Gluing speed: 22 m/min
- Dimensions: 3000×700×1236 mm
- Total weight: 850 kg
- Power supply: 380V
Performance features
- Double-cylinder with large glue capacity
- 14 L single-load butyl capacity
- German MAXIMATOK booster pump
- Automatic temperature control
- Uniform, precise rubber application
HK-UGUDE0002
Aluminum Bar Bending Machine
Fully automatic bender for aluminum spacer frames with Omron PLC, touchscreen interface, servo-controlled feeding and bending, ±2 mm/m accuracy, and support for 32 complex shapes to improve production flexibility and efficiency.
Technical parameters
- Aluminum bar width: 5.5–24 mm
- Min frame size: 250×250 mm
- Feeding speed: up to 120 m/min
- Air pressure: 0.6 Mpa
- Power: 4 KW
- Power supply: 3P 380V / 1P+N 200V 50Hz
- Dimensions: 10480×2200×2600 mm
Performance features
- Omron PLC with Winview touchscreen
- Servo motor for fast, precise bending
- Storage for 4 bar sizes
- ±0.3° angle accuracy
- Supports 32 programmable shapes
- Automatic cutting after bending
HK-UGUDE0007

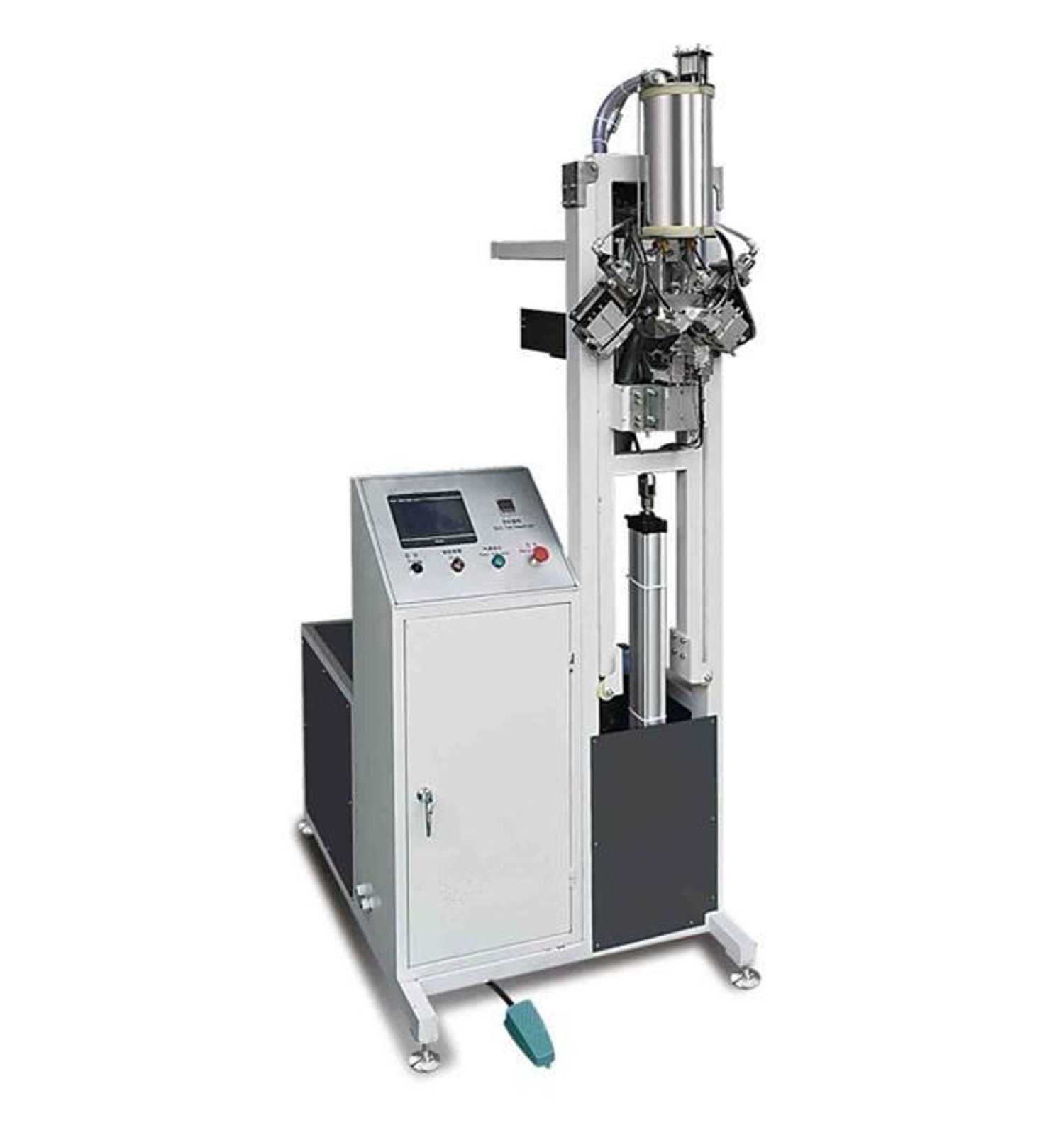

Automatic Desiccant Filling Machine
Fully automatic desiccant filling machine with Omron PLC, Airtac pneumatics, touchscreen control. Automatic drilling, filling, sealing for spacer frames. Adjustable filling height accommodates various frame sizes for flexible production.
Technical parameters
- Molecular sieve diameter: 0.5–0.8 mm
- Aluminum frame width: 5.5–24 mm
- Max frame size: 2400×2400 mm
- Air pressure: 0.6 Mpa
- Power: 1 KW
- Power supply: 1P+N 220V 50Hz
- Dimensions: 1100×1080×3050 mm
Performance features
- Omron PLC control system
- Winview touchscreen interface
- Airtac pneumatic components
- Automatic drilling, filling, sealing
- Adjustable filling height for frame size
- Works with bent or gusseted frames
HK-UGUDA0003
Automatic Loading Machine
Fully automated glass loading system with servo-controlled motion for safe, precise placement. Replaces manual loading to reduce labor intensity and risk while increasing production efficiency in glass processing lines.
Technical parameters
- Max processing size: 2500×3500 mm
- Glass thickness: 4–12 mm
- Suction arm speed: 0–12 m/min
- Max arm extension: 800 mm
- Swing arm angle: 84–100°
- Air source: 0.7–0.8 Mpa
- Total power: 10 KW
- Dimensions: 3000×2800×2900 mm
Performance features
- Fully automated loading operation
- Reduces manual labor intensity
- Minimizes operator risk
- Servo motor for precise, safe movement
- Smooth, efficient handling
HK-UGUDA0002

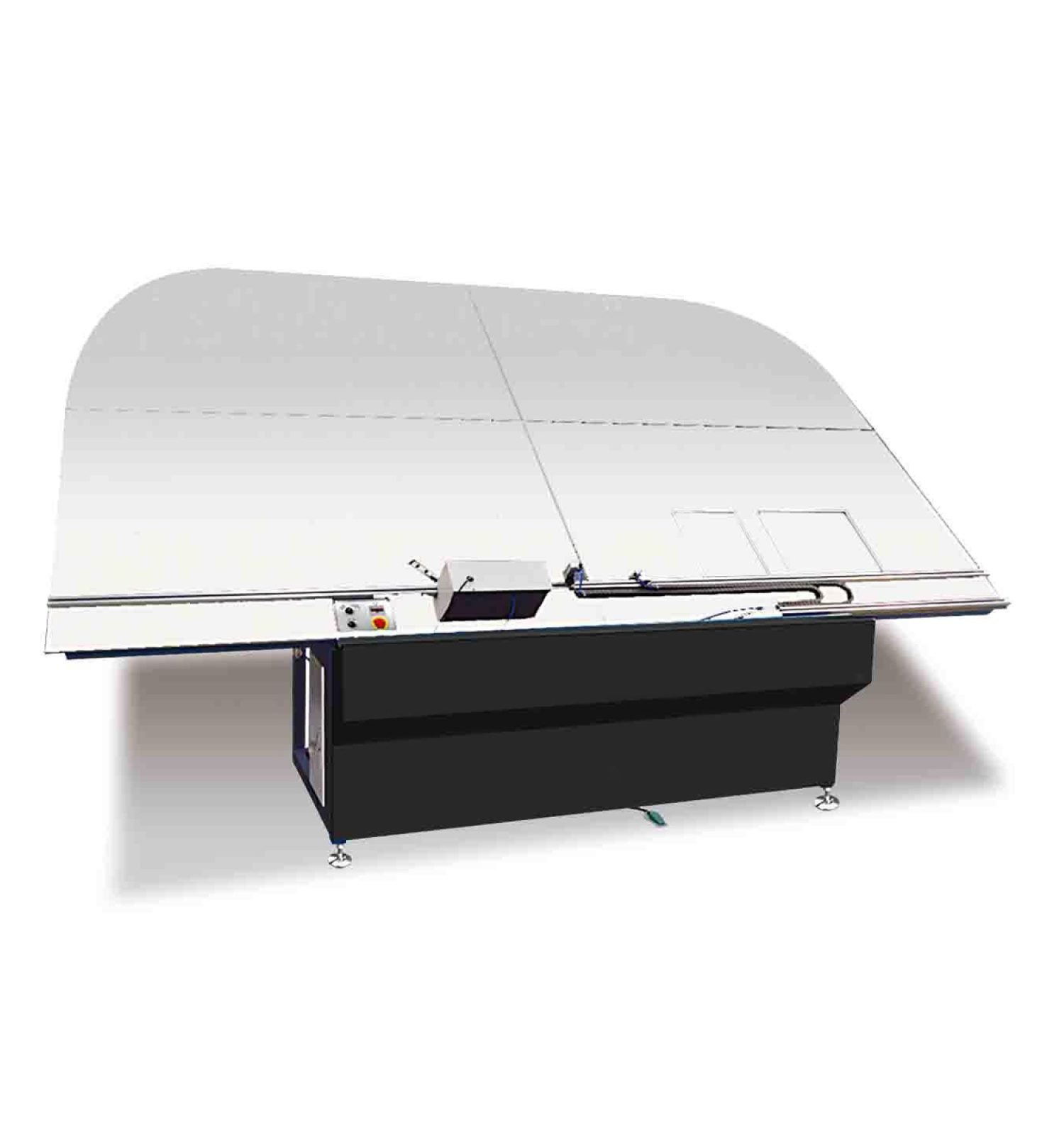

Glass Turning Table
0–90° Glass Reorientation Table for automated processing lines where changing the orientation of the workpiece is required. This allows the design of the IGUs (Insulating Glass Units) production line to be customized in an L or U shape.
Technical parameters
- Max glass size: 2500×3000 mm
- Glass thickness: 3-19 mm
- Rotation angle: 0-90º
- Power supply: 1P+N 220V 50Hz
- Dimensions: 3000×2800×2900 mm
Performance features
- Automated operation
- Reduces manual labor intensity
- Automatic drilling, filling, sealing
- Smooth and efficient handling
- Designed for space-constrained facilities
HK-UGUDE0003
Aluminum Bar Bending Machine
High-speed spacer frame bending machine equipped with dual servo motors for precise feeding and bending. Features 4 storage racks for different profile lengths and an automatic profile-splicing system during cut-and-bend operations to prevent material waste.
Technical parameters
- Aluminum bar width: 6–22 mm
- Min frame size: 250×300 mm
- Feeding speed: up to 120 m/min
- Air pressure: 0.6 Mpa
- Power: 4 KW
- Power supply: 3P 380V / 1P+N 200V 50Hz
- Dimensions: 10480×2200×2600 mm
Performance features
- Omron PLC with Winview touchscreen
- Servo motor for fast, precise bending
- Storage for 4 bar sizes
- ±0.3° angle accuracy
- Supports 32 programmable shapes
- Automatic cutting after bending
HK-UGUVP0006
10-Spindle Glass Edging Machine
Processes flat glass of various sizes and thicknesses in a single pass (grinding, rough, and fine polishing for edges and arrises). Equipped with electronic thickness adjustment, individual depth knobs, panel gauges, variable speed drive, and a heavy-duty cast iron frame for high precision and stability.
Technical parameters
- Min glass size: 120×120 mm
- Glass thickness: 3-25 mm
- Working speed: 1 to 5 m/min
- Power supply: 20.5 kW
- Dimensions:7300×1300×2520 mm
Performance features
- Single pass process
- Automatic thickness adjustment
- Variable speed
- Smooth and efficient handling
- Equiped with 10 engines
HK-UGUDE0001
Aluminum Spacer Transfer Machine
Automatic-advance storage unit for IGU spacer frames. Works as an inline buffer between butyl extrusion and frame assembly on glass, streamlining workflow and maximizing production capacity.
Technical parameters
- Max frame size: 1900×1700 mm
- Power: 0.12 KW
- Power supply: 3P 380V / 1P+N 220V 50Hz
- Dimensions: 2250×2050×2365mm
Performance features
- Automatic forward feed
- Buffer stock of frames
- Maximizes production capacity
HK-UGUDS0002
Insulating glass automatic sealing line
Automatic and continuous sealing of rectangular insulating glass units of various sizes, offering high efficiency and stable sealing performance. It is equipped with a dual independent sealant supply system (pump and mixing device). The finished insulating glass unit (IGU) can be stored in either the first or third section, enhancing operational continuity and boosting production efficiency. Edge and corner sealing is completely bubble-free, providing full coverage with no manual trimming required. It features a servo control system as well as a precise timing belt drive to ensure stable and clean glass conveyance.
Technical parameters
- Max glass size: 2500×3500 mm
- Glass thickness: 3-12 mm
- Insulated glass thickness: 15-60 mm
- Power supply: 13 kW
- Conveyor speed: 0-48 m/min
- Sealing width: 6-24 mm
- Sealing depth: 2-15 mm
Performance features
- Automatic contimuos sealing
- Stable quality performance
- Friendly interface
- Easy operation
- Servo control system
